Stereo-Mikroma I, II cameras,

close-up lenses and Steomat cutter


viewmaster_1
family_1

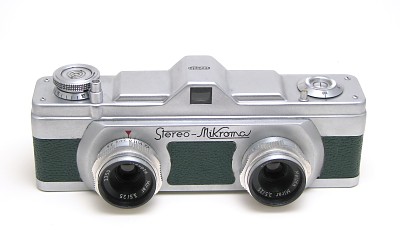

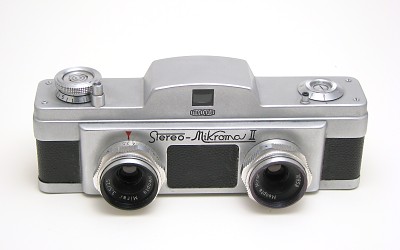

Stereo-Mikroma I Stereo-Mikroma II

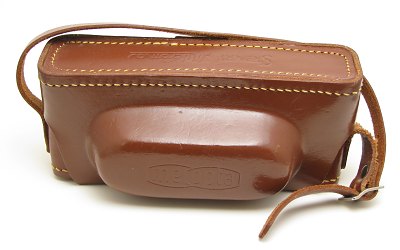

Leather case Close-up lenses

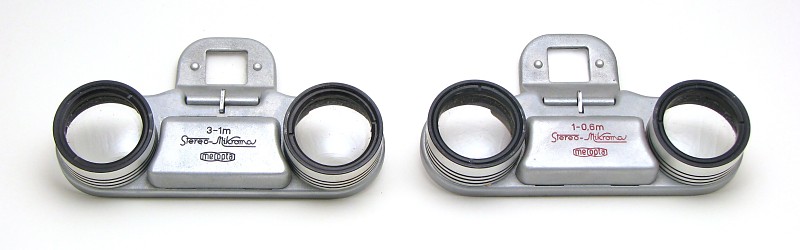

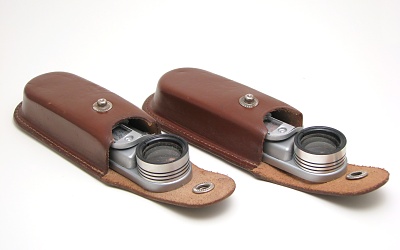

Close-up lenses

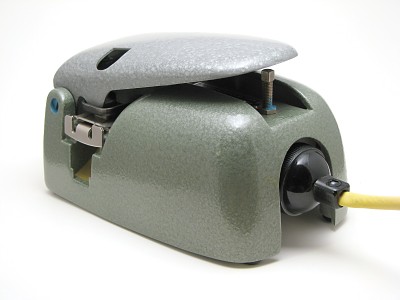

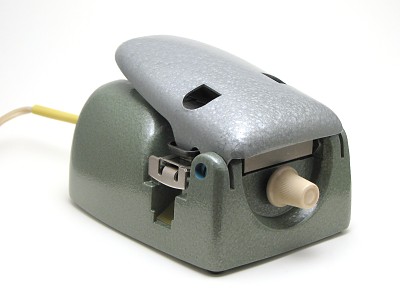

Steomat Steomat

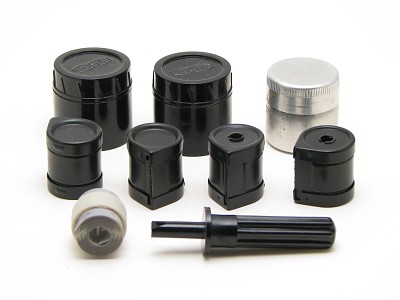

Accesories Accesories
Camera Stereo-Mikroma I Stereo-Mikroma II
Year Introduced 1960 1965
Weight without / with case 439 grams / 579 grams 417 grams / 566 grams

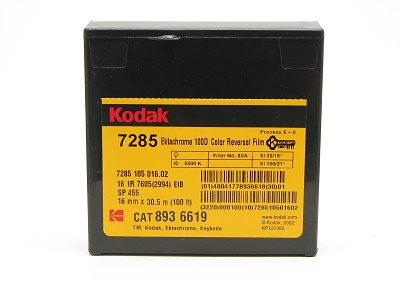

Film 16 mm single perforation 16 mm single perforation
Size (W x H x D) 142 x 49 x 59 mm 142 x 53 x 48 mm
Lens Separation 61.48 mm 61.48 mm
Image Format (W x H) 12.92 x 11.70 mm 12.92 x 11.70 mm
Image Window Separation 63.60 mm 63.60 mm
Lenses Meopta Mirar 1:3.5/25 mm Meopta Mirar 1:3.5/25 mm
Diaphragms continuously adjustable f/3.5 to f/22 continuously adjustable f/3.5 to f/22
Focusing fixed focus fixed focus
Shutter Speeds 1/100, 1/50, 1/25, 1/10, 1/5 sec. and "B" 1/100, 1/50, 1/25, 1/10, 1/5 sec. and "B"
Frame Counter additive, 1 to 22 additive, 1 to 22
Tripod Socket 1" / 20 TPI 1" / 20 TPI
Flash Contact PC-Contact PC-Contact
Film advance detach from winding connected with winding
Bubble level in viewfinder yes no

Links to Stereomikroma I manual, Stereo-Mikroma I prospectus, Stereomikroma II manual, Stereo-Mikroma I catalogue
sheet - version 1, version 2, Steomat manual and catalogue sheet, close-up lenses manual, Stereomikroma poster.

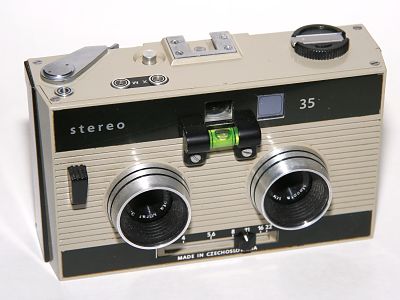

Stereo 35 Meopta camera and Steomat 35 cutter

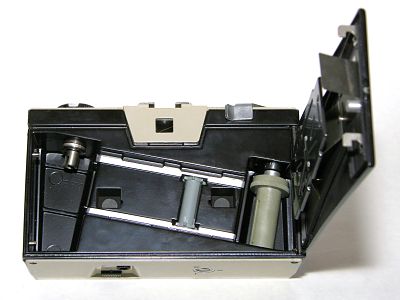

Front view Inside

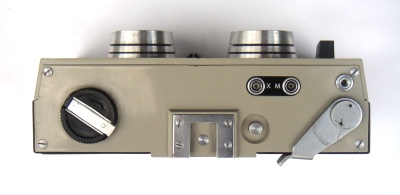

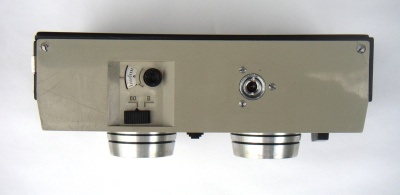

Top Bottom
Year Introduced 1972
Weight without / with case 616 grams / 734 grams
Film 35 mm (cartridge)
Size (W x H x D) 157 x 94 x 62 mm
Lens Separation 63.70 mm
Image Format (W x H) 13.24 x 11.32 mm
Image Window Separation 64.96 mm
Lenses Meopta Mirar 1:3.5/25 mm
Diaphragms continuously adjustable f/3.5 to f/22
Focusing fixed focus
Shutter Speeds 1/60 sec. and "B"
Frame Counter additive, 1 to 74
Tripod Socket 3/8" / 16 TPI
Flash Contact X-Contact, M-Contact, PC-Contact

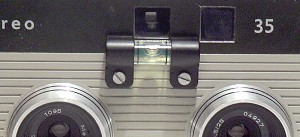

Camera improvement - Convenient bubble level near the bottom of the viewfinder.

Level

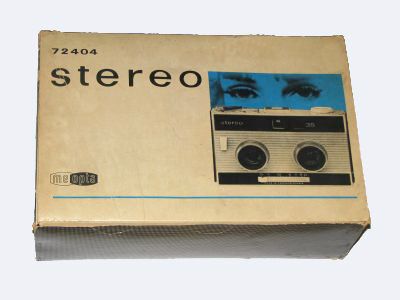

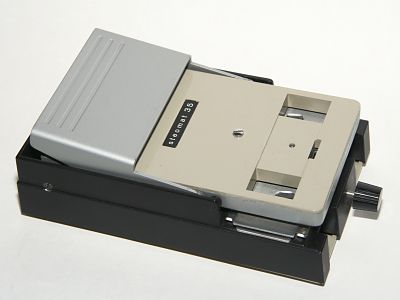

Steomat 35 Box

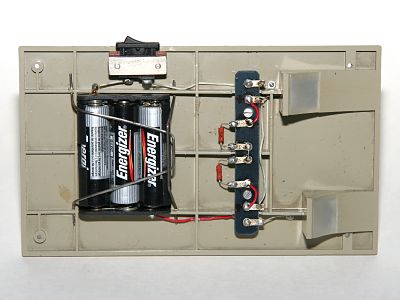

Cutter modification - illumination and ability to view stereoscopic pairs before cutting.

Illumination Cutter-Viewer

Links to Stereo 35 manual, catalogue sheet, letter of guarantee, Steomat 35 manual and lightmeter Leningrad II manual (pdf).
